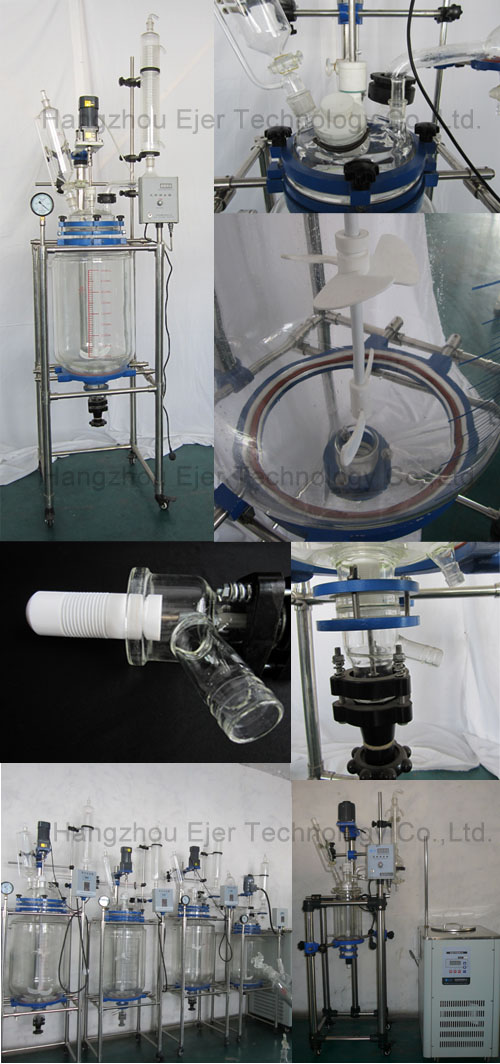

Jacketed glass reactor(10L)

Name：Jacketed glass reactor(10L)

Model：EJ-JGR10

Specs 10L1L2L5L20L30L50L100L More

Subdivide：

Inquiry immediately Send Mail Product Catalog

Related products

Glass reactor/Rotary evaporator

Jacketed glass reactor

Details Parameter Features Question

Jacketed glass reactor inner container is placed reactants, while vacuum and speed stirring, mezzanine can import frozen liquid, water and high temperature liquid heating and cooling of materials. For the chemical, fine chemicals, bio-pharmaceuticals and new materials synthesis experiments, pilot and production. Products supporting the components of the system can be used with multi-purpose water circulation pumps, diaphragm pumps, temperature cycling (vacuum) pump, circulating cooler, thermostatic circulators, low-temperature cooling liquid circulating pump, closed refrigeration cycle heating device and other devices.
● High borosilicate glass has good physical and chemical properties.
● Can be used in wide temperature range from high temperature (200℃）to low temperature(-80 ℃).
● Can work in constant pressure and vacuum,vacuum degree is below 0.095 MPa in stationary.
● Digital display of mixing speed, frequency conversion, and constant speed mixing system, work steadily.
● The sealing method and materials between mixer shaft, PTFE mixing propeller, and kettle cover are Know how of our company.
● Corrosion resistant discharge valve is without dead space design.
● The cooling or heating solution in the interlayer can be competely removed after reaction.
● The whole structure is novelty, practical and beautiful.

asic parameters	Model	EJ-JGR10
	The reaction flask（L)	10
	Bottle number	5
	Speed（rpm）	0—680
	Stirring shaft(mm)	5
	Mixing Power（w）	120
	Voltage / frequency	220V/50HZ
	Dimensions（mm×mm×mm)	480×480×1880
Function Deployment (• Standard) (- Optional)	Frequency Control	Standard
	Vertical condenser	Standard
	Digital display speed	Standard
	Temperature Tube	Standard
	PTFE seal assembly	Standard
	Feeding piston	Standard
	Distillation unit	Standard
	Reflux device	Standard
	Low speed by force	Standard
	Decentralization of material	Standard
	Vacuum Table	Standard
	Universal joint connection	Standard
	High and low intelligent digital	Optional
	Propeller stirrer	Optional
	Explosion-proof motors	Optional
	Explosion controller	Optional

More Spec. 10L1L2L5L20L30L50L100L

The reaction flask(L) :10
Bottle mouth the number: 5
Glass Material:GG17 borosilicate glass
Bracket Material: SUS304 stainless steel
Speed(rpm): 0—680
Mixing Power(w): 120
Voltage / frequency: 220V/50HZ
Dimensions(mm*mm*mm): 480*480*1880

1. Can products be customized?

Yes, fully customizable per your specifications.

2. Accepted payment terms?

T/T (100% advance bank transfer) - SWIFT, FAST, MEPS, GIRO, and ACH accepted

PayPal (Amount less than $500, and must be transported by Express.).

Credit Card

Letter of Credit (LC)

3. Available shipping methods?

By Sea, By air, rail transport, international express or as per your request.

4. Export experience?

We export globally, serving clients in over 100 countries and regions.

5. How long is the production time?

Standard product: 5-10 days, customized product: 15-30 days.

6、Supported trade terms?

FOB, CIF, EXW, FCA, DDU, DAP and DDP.
